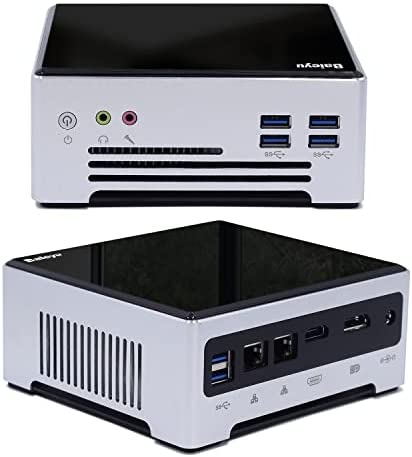

Baieyu MINI PC enjoys wonderful office life from here, and brings you the best experience!
RAM: DDR4 2400MHz Two SO-DIMM solutions, support up to 64 GB
memory: Support 2 * M.2 NVME (one support M.2 SATA)
Wireless: M.2 WIFI (with 2 * built-in antenna)
I / O -Connection: 6 * USB 3.0, 1X headphone output / MIC input, 1X DP, 1X HDMI, 1X DC power, 2X RJ45 LAN connection
Operating system: Supports Windows 8/10, Linux, Ubuntu OS and more
Various processing powers are available to suit the needs of buyers with different preferences!
1.7th generation 14 nm CPU Kaby Lake Intel Core i7 7700HQ 4 cores 8 threads 2.8 GHz to 3.8 GHz 6 MB cache TDP 45 W HD Graphics 630.
2.14 nm CPU of the 7th generation Kaby Lake Intel Core i7 7820HK 4 cores 8 threads 2.9 GHz to 3.9 GHz 8 MB cache TDP 45 W HD Graphics 630.
3.generation 14 nm CPU Kaby Lake Intel Core i5 7440HQ 4 cores 4 threads 2.8 GHz to 3.8 GHz 6 MB cache TDP 45 W HD Graphics 630.
4.14 nm CPU of the 7th generation Kaby Lake Intel Core i5 7300HQ 4 cores 4 threads 2.5 GHz to 3.5 GHz 6 MB cache TDP 45 W HD Graphics 630.
Processor Graphics: Intel HD Graphics 630
HDMI: 1 x HDMI (4K)
DP port: 1 x DP port (4K)
Power supply: 19V power input, 19V 7A power supply included
Auto power on: Support auto power on function
In & Out interfaces:
USB connection: 6 x USB 3.0 connection
Audio: 3.5 mm 1 socket, MIC In / Line Out
Power consumption: 5.5mm 19V inches
Lan port: 2 x RJ45 Lan, RTL8168 / 8111/8112 Gigabit Ethernet controller
WiFi: within 433 Mbit / s and Bluetooth 4.2
Numerous interfaces for different requirements in life. You can connect two monitors via HDMI and DP. You don’t have to worry about kids watching cartoons with you quickly because you want to watch soccer. Other different interfaces may meet different needs ； 19 volt voltage design can save you many electricity bills every year.
USB 3.0 interface
The mini computer has 2 USB 3.0 interfaces. The transfer of USB 3.0 is ten times faster than that of USB 2.0. You can easily transfer files with large capacities, including large HD films, in a short time and thus reduce energy consumption.
mini pc support bluetooth 4.2, you can connect it to your bluetooth headset, air mouse, keyboard and even game controller at any time. Simplify your life with the convenient connectivity of your devices.
Dual Band WiFi
Windows 10 Pro Mini PC supports 2.4G / 5G dual band WiFi. The advantage of the dual band WiFi device is that it has a stronger and more stable WiFi radio signal, and makes the WiFi device more energy efficient to meet the future requirements for wireless transmission in high definition and big data. It also supports Ethernet 10M / 100M / 1000M. What It Does Well, Internet Browsing, Office Work, Emailing, Watching Online Videos, Social Media, and Very Light Games.
Abundant slots: Supports 2 M.2 NVME SSDs and an AC 3165 WLAN slot
1. Memory (RAM): two slots, DDR4 maximum 64 GB
2. Memory type: 2 * 260-pin DDR4 SO-DIMM
3. Wifi Module: 1 x Half Height Mini PCle WiFi / BT4.2; 2 built-in WiFi antennas
4. Wake on Lan: support
5. Watchdog: support
6. Operating system: Support Windows 10 / Linux
7. Temperature / Humidity: -30 ° C to 70 ° C / 10% -90%, no condensation
8. Housing material: Housing made of aluminum alloy and plastic top and side panels
9.Size: 16 * 6.5 * 13.7cm
10. Weight: gross weight 1.5kg, net weight 0.7kg
The setup is simple and straightforward. Simple and easy. The modem connection is fast and excellent. You can get 100-130Mbps speed over WiFi continuously. Surf the internet very well and react quickly. Watching videos on YouTube and similar websites is great. 720p videos can run very smoothly even at 1080p. You can just plug in the wireless keyboard and it will work fine. Connect the USB receiver and the computer will recognize it immediately. Boot up quickly.
CPU&GPU→→Baieyu Mini Computer Equipped Intel Core i7-7820HK Processor (8M Cache, 4 Cores 8 Threads, up to 3.90 GHz).The GPU is Intel HD Graphics 630, Which can Achieve the Same Excellent Graphics Processing Performance and Smooth Application Experience.
Pre-installed Windows 10 Pro System→→Mini PC Windows 10 Pro System is Pre-installed by default (with Key Label), or it can be replaced with UNIX, Linux, Windows 7 and Other Systems.And Ours provides 30 days no-reason return + 36 months warranty + permanent technical support + permanent service.
Large capacity→→This Mini Computers Load with 32GB DDR4,256GB SSD.There is no storage capacity limitation of 2 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME) and 1 x M.2 SATA.More fast performance storage. Support DIY SSD storages.
Interface, WiFi and Bluetooth 4.2→→This Desktop Computer Including 6xUSB 3.0, 2xGigabit Ethernet.Built-in Dual Band Wireless-AC 3165 Inside 433 Mbps,Wider Bandwidth, Less Interference.Supports Bluetooth 4.2 and Perfect in Delivering Amazingly Smooth Data Transfer.
4K Dual Display&Auto Power On→→The size of the Mini Computer is 15×6.5×13.7cm, the HDMI+DP port can connect two additional monitors at the same time to improve your work efficiency.And It supports automatic power-on after power failure, and any abnormal shutdown in the future will automatically power on the computer after it is connected to the main power supply.
